Introduction
mapreduce consists of four components:
- Map phase
- Reduce phase
- Shuffle phase
- Combiner
Problem statement
Here's a problem we'd like to solve. We have a data set with information about several fictitious stock symbol. In each line in the data set, we have information about a stock symbol for a day: opening price, closing price, high, low, volume, etc.
Let's pick the first line in the above picture, it is going to be our record. The first is the exchange name, ABCSE, ABC stock exchange. The next is the symbol - B7J, the date - 2008-10-28, the opening price - 6.48, closing price - 6.72, high - 6.74, low - 6.22 for the day and the volume - 44300. This data set is about 400 MB, not too big but good enough for our experimentation and learning.
Now, it is about the problem we would like to solve with this data set. For every stock symbol in the data set, we would like to find out its maximum closing price across several days.
The above diagram shows the algorithm. We'll read a line, get the symbol on closing price from the line, then we need to check if the closing price is greater than the closing price we have for that symbol.
If not, go to the next line. Otherwise, the closing price is greater than the closing price that you already have for that symbol, save the closing price as the maximum closing price for that symbol and move on to the next record in the data set.
If the end of the file is reached, print the results.
The problem with this approach is that there is no parallelization. Thus, if we have a huge data set, we will have extremely long computation time which is not ideal.
Input split
Let's consider how we have worked out the same problem in the mapreduce world. From the article What MapReduce is, we got introduced to the faces of MapReduce, so we'll take this problem and go over each phase and see the technical details involved in the map phase, reduce phase and shuffle phase.
First, it is about the map phase, the central idea behind MapReduce is distributed processing. So, first thing is to divide the data set into chunks and you have separate process working on each chunk of data. The chunks are called input splits and the process working on the chunks are called mappers, as show as in the above picture. Each mapper would process a record at a time and each mapper would execute the same set of code on every single record. The output of the mapper would be a key-value pair.

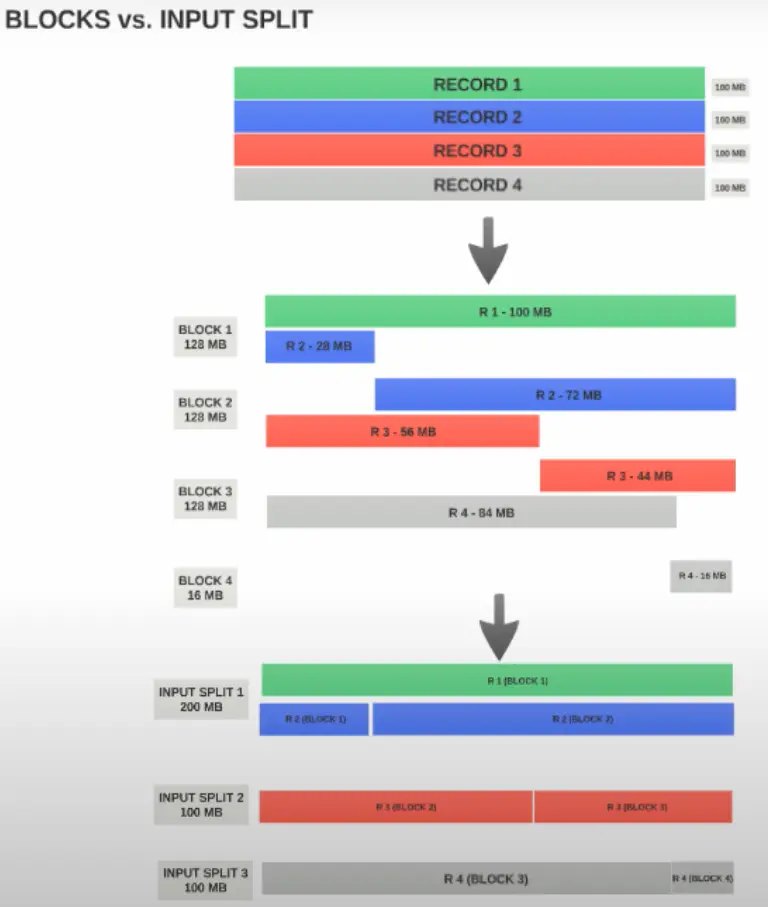

Is it true that input split is same as the block? Input split is not same as the block. A block is a hard division of data at the block size. If the block size in your cluster is 128 MB. Each block for the data set will be 128 MB except for the last block which could be less than the block size if the file size is not entirely divisible by the block size. Since a block is a hard cut at the block size, a block can end even before a record ends. In the above diagram, we have four records in our data set and each record is 100 MB and the block size of our cluster is 128 MB. So the first record will perfectly fit in the block since the record size is 100 mb it's built within the block size which is 128 MB. However, the second record cannot fit in the block, so the record number 2 will start in block 1 and will end in block 2.
If we assign a mapper to block 1, in this case, the mapper cannot process record 2 because block 1 does not have the complete record 2. This is exactly the problem input split solves. In this case, input split 1 will have both record 1 and record 2. Input split 2, however, does not start with record 2.
Since record 2 is already included in the input split 1. so input split 2 will have only record 3. Record three is divided between block 2 and block 3. Input split is not physical chunks of data, it is a Java class behind the scenes with pointers to start and end location within blocks.
Therefore, when a mapper tries to read the data, it clearly knows where to start and where to end. The start location of an input split can start in a block and can end in another block.
So that is why we have a concept of input split. Input split respects logical record boundary. During mapreduce execution hadoop scans through the blocks and create input splits which respects record boundaries.
Map phase
With the understanding about input splits, we can take a look about the mapper in detail. A mapper in hadoop can be written in many different programming languages, it can be written in C++, python Scala and Java. In our case we'll look at Java, a mapper is a Java program in our case which is invoked by the Hadoop framework once per every record in the input split.
So if you have 100 records in a input split, the mapper processing the split will be executed 100 times.
*Question: how many mappers will Hadoop create to process a data set? Answer: the number of mappers is entirely dependent on the number of input splits.*
If there are 10 input splits, there will be 10 mappers. If there are 100 input splits, there will be 100 mappers
So a mapper is invoked for every single record in the input split and then the output of the mapper should be a key value pair. In our sample stock data set, every line is a record for us and we need to parse the record to get the stock symbol and the closing price. The stock symbol and the closing price becomes the output from each execution of the mapper: the symbol is going to be the key and the closing price is going to be the value in your key value pair.
But how do we decide what should be the key and what should be the value in our key value pair?
Reduce phase
The reduce phase that will give us an answer. The reducers work on the output of the mappers. The output of individual mappers are grouped by the key, in our case, the stock symbol and pass to the reducer. Reducer will receive a key and a list of values for that key for input. The keys will be grouped.
For example, our data set has stock information about 10 stock symbols and 100 records for each symbol so that is 1000 records in total, 10 stock symbols and 100 records for each stock symbols that is thousand records.
We will get 1000 key value pairs from all mappers combined because our mapper will be executed for each record When processing a record, we can decide not to output a key value pair for the record. For instance, the record could be bad, in that case, we won't output a record from the mapper.
But in an ideal scenario, we will have 1000 key value pairs because we have thousand records then the reducer will receive 10 records to process. One record for each symbol since we only have information about 10 stocks. Each record for the reducer will have a symbol for the key and a list of closing prices for value that is all we need to calculate the maximum closing price for each symbol.
The work of the reducer becomes simple, it reads the key and calculate the maximum closing price from the list of closing prices for that symbol and output the result.
*Question: how do we decide what should be the key and what should be the value?*
There is a simple trick: think about what needs to be reduced. In our example, we know if the reducer has the stock symbol and the list of closing prices for a given stock symbol, we can arrive at the maximum closing price and also we want the reducer to be called once per symbol that is why we made symbol as the key in mapper's output and closing price as the value.
We know the number of mappers equals to the number of input splits are not controlled by the users. Number of reducers can be set by the user, we can even have a map reduced job with no reducers.
Assuming that data set is divided into 100 splits which means 100 mappers. Now we have only one reducer to process all the output from 100 mappers. In some cases it might be okay but we might run into performance bottleneck at the reduced phase because we're trying to reduce output from 100 mappers in one reducer. So if we're dealing with large amount of data in the reduced phase it is advisable to have more than one reducer.
Shuffle phase
In the above picture, we have multiple reducers. Let's consider how the output of the individual mappers got grouped by symbols and reached the reducer. The magic happens in the shuffle phase.
Shuffle phase is also a key component in mapreduce. The process, in which the map output is transferred to the reducers, is known as a shuffle. Let's take a look at the shuffle phase in detail.
Assuming that in our mapreduce job, we decided to use three reducers. For example, we have have data for Apple in the stock data set and we have 10 input splits to process which means we will need 10 mappers.
We can have records for Apple in more than one input split. Let's say the records for Apple is spread out in all the 10 input splits, this means each mapper will produce key value pairs for Apple in its output.
When we have more than one reducer, we don't want the key value pairs for Apple to be spread out between the three reducers that will be bad for our use case because we won't be able to calculate the consolidate max closing price for Apple. Therefore, we want all the key value pairs for Apple to go to one reducer. In other words we want each key or symbol in our case to be assigned to a reducer and stick with it.
In the map phase, each key is assigned to a partition. So if we have three reducers, we will have three partitions and each key is assigned to a partition by a class called partitioner.
If the partitioner decides that any key value pair with Apple as key should go to partition 1 then all key value pairs with Apple as key will go to partition 1 and each partition will be assigned to a reducer: Partition 1 will be assigned to Reducer 1, Partition 2 will be assigned to Reducer 2, etc. It is key to understand that this partitioning happens across all the mappers in the map phase.
Hadoop framework will guarantee that input to the reducers is sorted by key and so once the keys are assigned to the right partition the key value pairs in the partition are sorted by key.
Once the keys are sorted, we are now ready to copy each partition to the appropriate reducers. This is known as the copy phase, we have to understand that data for partition 1, for instance, can come from many mappers because in our example the records for Apple can be spread across multiple input splits. Therefore, in the reduced phase, the partitions have to be merged together maintaining the sort ordering by key even though the intense sorting happened at the map phase.
In some documentation, we will see the merge action referred to as sort on the reduce side. Once the reducers have received all the partitions from all the mappers and the partitions are merged, the reducer will perform the actual reduce operation. That's the shuffle phase.
Let's summarize the shuffle phase. Each mapper will process all the records in its assigned input split and will output a key value pair for each record. If we look at the output, we have symbol for key and closing price as value. For example, in the above picture, we can see here ABC is a symbol and 60 is the closing price for ABC. Similarly for symbol STT, we have closing price as 82.
Same for other mappers as well, we may also note that symbols in mapper 1 can also be found in mapper 2. Look at the symbol STT for instance, we have STT in mapper 1 and we can also see STT in mapper 2. Then in the shuffle phase within each mapper the key value pairs will be assigned to a partition.
Within each partition the key value pairs will be sorted by key. As shown as in the above picture, the output key value pairs are nicely sorted by key in each mapper. Then, the key value pairs from each mapper will be copied over to the reduced phase to the appropriate reducers.
At each reducer the key value pairs coming from different mappers will be merged maintaining the sort order.
There are two things to note in the picture:
- the symbols are unique to each reducer meaning even though records from symbol were widespread across multiple mappers they were sent to one reducer. Take a look at symbol ABC for instance, ABC was found in mapper 1 and ABC was also found in mapper 2 but key value pairs for symbol ABC is sent to only one reducer, in this case, reducer 1. Similarly you can find key value pairs for symbol STT in mapper 1 and also in mapper 2 but the key value pairs for STT is sent to only one reducer, in this case, reducer 2.
- Once the key value pairs are copied and merged, the job for reducer is very simple. Reducer 1 will run three times, one for each symbol and reducer 2 will run two times, one for each symbol
Each run will print the symbol and its maximum closing price. That's the end to end process in mapreduce.
Combiner
We could also have an optional combiner at the map phase. Combiners can be used to reduce the amount of data that is sent to the reduce phase. In our example, there is no reason to send all the closing prices for each symbol from each mapper. As shown in the above picture, in mapper 1, we have three records for symbol ABC: one record with closing price 60, one record with closing price 50 and one record with closing price 111.
Since we are calculating the maximum closing price, we don't have to send the key value pairs with closing price 50 and 60 because they are less than the closing price 111. Thus, all we need to do here is we need to send the key value pair with closing price 111 for symbol ABC from mapper 1 to the reducer.
Intuitively, combiner is like a mini reducer that runs at the map phase. Combiners can be very helpful to reduce the load on the reduce side. Since we're reducing the amount of data that are being sent to the reducers, thereby increasing performance. Combiners are optional.
Summary
- the internals of map shuffle and reduced phases.
- the benefit of using a combiner.
